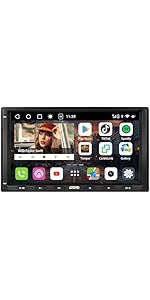

ATOTO S8 Android Car Stereo system - Your Versatile driving companion

Product Information

Note: DriveChat is continuously improving, and periodic updates are available. For the latest version, please update your app or system.

[Product Overview] ●Product Version: S8 Mass Popularization (Gen3). ●Model Number:S8 (4GB RAM / 32GB Storage). ●Mounting Style:UDH07D (7-inch Double-DIN Adaptive Head Unit). ●The latest upgrade from the previous S8 SD version now offers Android 10.0 with 4GB RAM + 32GB storage, featuring multiple connectivity options: Plug-and-Play, Wi-Fi hotspot, Bluetooth tethering, and USB tethering. Includes a vibrant 1024×600 QLED touchscreen with a wide 178° viewing angle.

[System Information] ●Processor: UIS 7862 ARM Cortex Octa-Core CPU (up to 1.8GHz), ARM Mali-G52 MP2 GPU; built with advanced 12nm technology. ●OS Version: ATOTO AICE UI 11.0 (Android 10-based, custom-developed). ●Languages Supported: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese, Chinese.

[Audio Features] ●Built-in Digital Signal Processor (DSP) with 32-band customizable EQ (16 bands each for front and rear), adjustable signal delay, bass boost, and bass filter. ●Preset EQ Modes: 9 presets available. ●Amplifier: Max output 4x45W, RMS 4x24W (14.4V, 10% THD)

[Bluetooth & Radio] ●Dual Bluetooth support (BT1: Bluetooth 5.0 with SBC/AAC codecs; BT2: Bluetooth 4.1). ●Supports Bluetooth protocols: HFP, HSP, A2DP, AVRCP, PBAP. ●Built-in highly sensitive radio tuner with RDS/RBDS capability; radio station names displayed where available.

[Display Features] ●7-inch QLED capacitive touchscreen (1024x600), 5-point multi-touch support, ultra-responsive and edge-to-edge flat panel design. ●Brightness: 600 cd/m² for excellent visibility in various lighting conditions. ●Smooth gestures including pinch-to-zoom, swipe, and scroll with no noticeable lag.

[GPS & Navigation]● Built-in GPS receiver with external antenna included. Pre-installed G_oogle Maps; supports offline navigation (offline maps require download). Works with commonly used navigation applications accessible via the Android platform. GPS Tracking-ATOTO's exclusive feature to simplify the way to locate your car.With TrackHU app preinstalled,you can follow vehicles in real-time on a simple map,customize alerts and geofences,get analytics, see past data,speed,distance, and more.

[Phone Integration & Mirroring] ●CarbitLink App: Pre-installed app for smartphone mirroring, supports latest iOS and Android devices via USB or Wi-Fi connection (firmware updates may be required).●Phone Integration: Supports wired/wireless CarPlay and Android Auto. Easily make calls, play music, send/receive messages, access navigation apps seamlessly on the built-in screen. (Note: Use your phone’s original USB cable for wired connections.)

[Additional Features]●Fast Boot: System starts within 2 seconds of vehicle ignition.●Split Screen: Use navigation alongside another app (e.g., YouTube) simultaneously.●Digital Photo Frame: Display personal photos from a specified gallery with one tap or hand gesture.●Speed Compensated Volume Control (SCVC): Automatically adjusts audio volume according to driving speed to compensate for road noise.●USB Network Tethering: Share mobile data via USB connection (CarbitLink app).●Live RearView (LRV): Provides clear rear visibility while driving, eliminating blind spots caused by passengers, headrests, and rooflines.

[Inputs, Outputs & Slots] ● AUX audio (L/R) and video input; ● FCAM front camera video input; ● Rearview camera input (S8 supports high-resolution video signals and may work with certain HD rearview cameras for enhanced display clarity); ● 4-channel RCA audio output (2V) for connection to external amplifiers; ● Separate subwoofer output (0.8V); ● This model does not support Optical SPDIF output or fast-charging interfaces; ● To connect to a headrest monitor, a compatible USB-to-HDMI or USB-to-RCA video output adaptor may be required (sold separately)

[Vehicle Compatibility] Compatible with standard double-DIN mounting frames (174mm x 98mm opening) widely available in North America (Metra, PAC dash kits). The S8 features a compact panel size of 172mm x 97mm with an included adapter extending it to 178mm x 101.5mm.

[Optional Accessories] (Sold Separately):

* CA-AEC01 Compact 4-Channel Car Amplifier (47W RMS x 4); * CA-AEC02 Plug-n-Play 4-Channel Car Amplifier (60W RMS x 4); * AC-44P2 1080P On-Dash DVR Camera; * AC-44F8 Steering Wheel Remote; * AC-4450 Bluetooth OBD-II Scanner / Code Reader; * AC-HD02LR / AC-HD03LR (with Virtual Surround View) HD Rear-view Cameras; * AC-UTP1 USB Tire Pressure Monitoring System (TPMS); * AC-AHV68 (USB-to-HDMI Video Adapter); * AC-AHV48 (USB-to-RCA Video Adapter); * AC-HAV50 HDMI-to-AHD Video Converter (supports HDMI 1.4, compatible with gaming consoles, TV boxes, etc.); * Note: Some accessories require connection prior to installation.

Car stereo plus: Install Android apps, stream music, use online maps with live traffic, and connect devices for more features

S8 provides 4 Methods for Internet Access - Wi-Fi/BT/USB Tethering & Plug and Play:

[Connectivity & Internet Options]

1)Phone Cellular Data:

ATOTO S8 connects easily to your phone's hotspot via Wi-Fi or Bluetooth tethering for convenient internet access. Online maps and music typically require minimal bandwidth (under 200kb/s), making Bluetooth tethering perfectly adequate and battery-friendly. While Wi-Fi tethering is faster and simple—just activate your phone’s hotspot to connect within seconds—Bluetooth tethering consumes less power, helping your phone battery last longer. Additionally, ATOTO introduces USB tethering, allowing you to share your phone’s data via USB, which can help conserve your battery or even slightly charge your phone during usage. Simply run the CarbitLink app in the background to activate USB tethering.

2)Independent Internet Access:

Refer to the included user manual for detailed setup and instructions.

[Apps & GPS Tracking]

Enjoy access to countless Android apps from G00gle Play, optimized especially for ATOTO S8 Series, focusing primarily on automotive, media, entertainment, and navigation apps. While most apps are compatible, certain apps such as Net_flix may have restrictions.

ATOTO is dedicated to enhancing your driving experience with exclusive apps designed for our Android head units. Our pre-installed TrackHU GPS Tracking App offers real-time vehicle tracking, customizable alerts, geofence setup, route analytics, and speed/distance tracking, accessible globally for continuous vehicle security. Simply activate GPS and network settings to seamlessly access your vehicle's location anytime, ensuring complete peace of mind on every drive.

[Versatile Connectivity]

ATOTO S8 comes with multiple inputs and outputs tailored specifically for enhanced vehicle connectivity:

●Dash Cam：Connect a compatible USB DVR camera for real-time video preview and playback.●Tire Pressure Monitoring (TPMS): Supports ATOTO USB TPMS. Get real-time alerts and audible warnings directly on your screen if your tire pressure drops.●Rearview Camera: Connect HD or CVBS rearview cameras for convenient parking and reversing.●Screen Mirroring: Mirror your Android/iOS phone via USB or Wi-Fi using the CarbitLink app to share your phone screen directly to the S8 display.●Wireless CarPlay & Android Auto: Seamlessly connect your iOS or Android smartphone via USB or Bluetooth. Make calls, access music, send messages, and navigate easily without distraction.●OBD II Scanner: Connect via Bluetooth to monitor vehicle diagnostics and engine codes effectively. Dual Bluetooth ensures stable multitasking and efficient connectivity.●HDMI Connectivity: Connect game consoles, TV boxes, or other HDMI devices using ATOTO AC-HAV50 HDMI to AHD Converter (HDMI 1.4 supported) for high-quality entertainment on the go.●Headrest Entertainment: Sync your S8 display content to rear-seat monitors using ATOTO USB Video Adapters (AC-AHV68: USB to HDMI, AC-AHV48: USB to RCA; adapters sold separately) to keep passengers entertained during long trips.

Dual Bluetooth chips inside, connectable to more Bluetooth-based devices, customized Bluetooth 5.0 and voice assistant interface

● Bluetooth 1 provides hands-free calling and high-quality A2DP audio playing. It automatically syncs your phonebook and recent call history upon connection, allowing easy dialing through intuitive search features and customizable favorites. Built-in noise-cancellation technology effectively reduces background noise and echo, ensuring clear and effortless conversations without raising your voice.

● Bluetooth 2 offers versatile connectivity for Bluetooth tethering internet access, and supports connections with various Bluetooth devices such as gamepads (perfect for entertaining rear-seat passengers), OBD2 diagnostic scanners, and TPMS sensors.

● The dual Bluetooth modules in ATOTO S8 allow simultaneous connection of up to three devices—one for audio playing and two for data communication.

● ATOTO S8 Bluetooth seamlessly integrates with your smartphone’s voice assistant (Si_ri or G_oogle Assistant), enabling convenient hands-free calling and messaging using simple voice commands or dedicated buttons on the touchscreen, steering wheel, or ATOTO AC-44F8 wireless remote.
