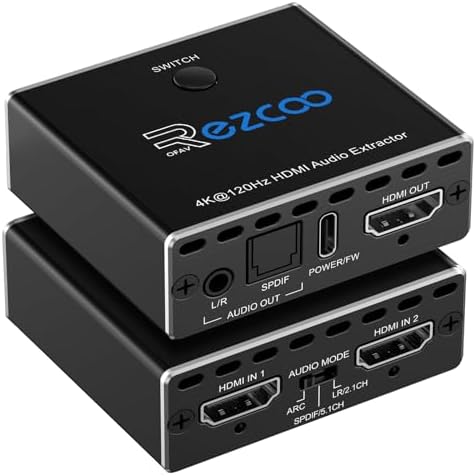

  • 4K@120Hz HDMI 2.1 Audio Extractor 2 in 1 Out VRR, ALLM, CEC, ARC, SPDIF, Dol-by Vision, HDCP 2.2 2.3 Bypass,HDR10 4:4:4 8 bit, for Nvi-Dia, AMD, PS5, Xbox, TV Box, Roku, Blu-ray, Laptop

4K@120Hz HDMI 2.1 Audio Extractor 2 in 1 Out VRR, ALLM, CEC, ARC, SPDIF, Dol-by Vision, HDCP 2.2 2.3 Bypass,HDR10 4:4:4 8 bit, for Nvi-Dia, AMD, PS5, Xbox, TV Box, Roku, Blu-ray, Laptop

4.2 out of 5 stars (26)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

About this item

  • 【8K HDMI 2.1 Audio Extractor 2x1 】The 2 ports HDMI 2.1 Audio Extractor 2 in 1 out easily shares video and audio from 2 different HDMI sources with 1 HDMI display.you can easily add external speakers, amplifiers, sound bars, and receivers to your movie/game system through HDMI (7.1 CH audio)/optical/3.5mm ports Supports IR Remote control switch and CEC. Easily switching between seamless transitions.
  • 【HDMI ARC ADUIO EXTRACTOR SPDIF Optical Stereo Audio】: Optical Tolink SPDIF+L/R 3.5mm Stereo+ARC audio out （Audio Return Channel and audio is available from the TV APPs）.Allows you extract the audio from the HDMI input source ( Like PS4, PS5, Cable box, Xbox or any HDMI device)connection to a spearker, Amplifier etc. Note: If you choose SPDIF optical or audio out, you can enjoy 5.1CH or 2CH or audio copy. If you choose 3.5mm or L/R audio out, you can enjoy 2CH or audio copy.
  • 【True 8K Ultra HD VRR ALLM Video & Audio Format】 -- Video Format - HDMI 2.1 Extractor supports multiple resolution up to 8K@60Hz 4K@120Hz 5120x1440@120Hz 1080P@240Hz 4:4:4 8bit. Also supports VRR ALLM HDR10 HDCP2.3 Dolby vision, 3D effect. Audio Format - Supports ARC, Dolby Atmos, DTS X,Dolby True HD, DTS-HD Master Audio, PCM7.1.
  • 【HDMI EXTRACTOR ARC CEC EDID Easy Usage】Support ARC CEC EDID Setting.Connect the type C cable from USB 5V1A Simply connect HDMI source with Input port & HDMI receive device with Output port through 𝗛𝗗𝗠𝗜 𝟮.𝟭 𝗖𝗮𝗯𝗹𝗲 𝗹𝗲𝘀𝘀 𝘁𝗵𝗮𝗻 𝟯𝗠, AUDIO MODE SELECT ARC,Optical and L/R will output audio from TV Apps NO CEC.AUDIO MODE SELECT SPDIF/5.1CH,COPY TV'EDID,Audio will be 5.1CH CEC. AUDIO MODE SELECT L/R/2.1CH,COPY TV' EDID,Audio will be 2.1CH CEC
  • 【AUDIO EXTRACTOR 8K Broad Compatibility】: This 2 port HDMI 2.1 Audio Extractor can compatible with partly HDMI device such as 鶹 Fire Stick, Apple TV, LE TV, PS5/ 4/ 3 Video Games, Macbook, VCD/ DVD Player, IP TV, STB, Media Box, Camera, Xbox360, , Huawei Box, MIUI Box, Smart Box, Blue-ray Player Chromecast, PC/Computer,ROKU4, SAT Receiver, Digital camera, Projector.
› See more product details

More items to explore

Page 1 of 1 Start again
Previous set of slides

  2. Sustainability features

    This product has sustainability features recognized by trusted certifications.
    Safer chemicals
    Made with chemicals safer for human health and the environment.
    As certified by
    Global Recycled Standard

    Global Recycled Standard

    Global Recycled Standard (GRS) certified products contain recycled content that has been independently verified at each stage of the supply chain, from the source to the final product and meet social, environmental, and chemical requirements. The purchase of Global Recycled Standard (GRS) certified products supports the use of recycled content in the supply chain. A product must contain at least 50% certified GRS material to qualify for inclusion in Climate Pledge Friendly.

    Certification Body

    SGS

    Certification Number

    TE-00304167

    Climate Pledge Friendly

    Discover more products with sustainability features.Learn more
Next set of slides

Product information

Technical Details

Manufacturer ‎EZCOO
Place of Business ‎ezcoo
Part number ‎CA-SW21HA21
Item Weight ‎100 g
Parcel Dimensions ‎11.9 x 6.5 x 2.4 cm; 100 g
Manufacturer reference ‎CA-SW21HA21
Included components ‎HDMI 2.1 Audio Extractor, USB-C Cable, Cable Ties, Manual.
Batteries Required? ‎No

Additional Information

ASIN B0G6JJYJVF
Customer Reviews
4.2 out of 5 stars (26)

4.2 out of 5 stars
鶹 Rank
Date First Available Dec 12 2025

Feedback

4K@120Hz HDMI 2.1 Audio Extractor 2 in 1 Out VRR, ALLM, CEC, ARC, SPDIF, Dol-by Vision, HDCP 2.2 2.3 Bypass,HDR10 4:4:4 8 bit, for Nvi-Dia, AMD, PS5, Xbox, TV Box, Roku, Blu-ray, Laptop

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product details

  • Parcel Dimensions ‏ : ‎ 11.9 x 6.5 x 2.4 cm; 100 g
  • Date First Available ‏ : ‎ Dec 12 2025
  • Manufacturer ‏ : ‎ EZCOO
  • Place of Business ‏ : ‎ ezcoo
  • ASIN ‏ : ‎ B0G6JJYJVF
  • Manufacturer reference ‏ : ‎ CA-SW21HA21
  • Country of origin ‏ : ‎ China
  • 鶹 Rank: #5,629 in Electronics (See Top 100 in Electronics)
  • Customer Reviews:
    4.2 out of 5 stars (26)

Product Description

4K@120Hz HDMI 2.1 Audio Extractor
4K@120Hz HDMI 2.1 Audio Extractor
4K@120Hz HDMI 2.1 Audio Extractor
4K@120Hz HDMI 2.1 Audio Extractor
4K@120Hz HDMI 2.1 Audio Extractor
4K@120Hz HDMI 2.1 Audio Extractor

Usage Tips for Optimal Performance

Power Supply Use the no included 5V 1A (or higher) power adapter for stable operation.
Power Connection Always connect the included power cable to a 5V 1A (or higher) power source to ensure stable and fast transmission.
HDMI 2.1 cable To achieve the best performance at 4K@120Hz, use a HDMI 2.1 cable that is no longer than 3 meters.
Source and Display Settings Confirm that both your HDMI source device (e.g., laptop) and HDMI display (e.g., monitor) are set to support your desired resolution and refresh rate.
5.1CH Audio Output If you want 5.1-channel audio, make sure both your source device and TV are set to output 5.1CH, HDMI OUT & SPIDF outputs 5.1CH and configure the EDID switches to SPDIF/5.1.OUT ARC EDID ARC
2.1CH Audio Output If you want 2.1-channel audio, make sure both your source device and TV are set to output 2.1CH, HDMI OUT2 & SPIDF&L/R outputs 2.1CH and configure the EDID switches to LR/2.1CH.
Audio Format Limitation The device cannot output two different audio formats simultaneously.
CEC Function Only for TV menu control of the source device—no volume adjustment.
Power-On Sequence Turn on the display first.Connect the HDMI splitter.Power on the source device.
Troubleshooting Tips If audio/video issues occur: Check power supply (5V 1A+). Verify HDMI 2.1 cable less than 3M. EDID switches match your audio format.
Sponsored
|
FREE delivery Mon, Mar 9
FREE delivery Mar 26 - Apr 17
FREE delivery Wed, Mar 11

Product Summary: 4K@120Hz HDMI 2.1 Audio Extractor 2 in 1 Out VRR, ALLM, CEC, ARC, SPDIF, Dol-by Vision, HDCP 2.2 2.3 Bypass,HDR10 4:4:4 8 bit, for Nvi-Dia, AMD, PS5, Xbox, TV Box, Roku, Blu-ray, Laptop

From ezcoo

4.2 out of 5 stars, 26 ratings

Customer reviews

50+ viewed in past week

Price

No featured offers available

Other sellers

Other sellers

About this Item

  • 【8K HDMI 2.1 Audio Extractor 2x1 】The 2 ports HDMI 2.1 Audio Extractor 2 in 1 out easily shares video and audio from 2 different HDMI sources with 1 HDMI display.you can easily add external speakers, amplifiers, sound bars, and receivers to your movie/game system through HDMI (7.1 CH audio)/optical/3.5mm ports Supports IR Remote control switch and CEC. Easily switching between seamless transitions.
  • 【HDMI ARC ADUIO EXTRACTOR SPDIF Optical Stereo Audio】: Optical Tolink SPDIF+L/R 3.5mm Stereo+ARC audio out （Audio Return Channel and audio is available from the TV APPs）.Allows you extract the audio from the HDMI input source ( Like PS4, PS5, Cable box, Xbox or any HDMI device)connection to a spearker, Amplifier etc. Note: If you choose SPDIF optical or audio out, you can enjoy 5.1CH or 2CH or audio copy. If you choose 3.5mm or L/R audio out, you can enjoy 2CH or audio copy.
  • 【True 8K Ultra HD VRR ALLM Video & Audio Format】 -- Video Format - HDMI 2.1 Extractor supports multiple resolution up to 8K@60Hz 4K@120Hz 5120x1440@120Hz 1080P@240Hz 4:4:4 8bit. Also supports VRR ALLM HDR10 HDCP2.3 Dolby vision, 3D effect. Audio Format - Supports ARC, Dolby Atmos, DTS X,Dolby True HD, DTS-HD Master Audio, PCM7.1.
  • 【HDMI EXTRACTOR ARC CEC EDID Easy Usage】Support ARC CEC EDID Setting.Connect the type C cable from USB 5V1A Simply connect HDMI source with Input port & HDMI receive device with Output port through 𝗛𝗗𝗠𝗜 𝟮.𝟭 𝗖𝗮𝗯𝗹𝗲 𝗹𝗲𝘀𝘀 𝘁𝗵𝗮𝗻 𝟯𝗠, AUDIO MODE SELECT ARC,Optical and L/R will output audio from TV Apps NO CEC.AUDIO MODE SELECT SPDIF/5.1CH,COPY TV'EDID,Audio will be 5.1CH CEC. AUDIO MODE SELECT L/R/2.1CH,COPY TV' EDID,Audio will be 2.1CH CEC
  • 【AUDIO EXTRACTOR 8K Broad Compatibility】: This 2 port HDMI 2.1 Audio Extractor can compatible with partly HDMI device such as 鶹 Fire Stick, Apple TV, LE TV, PS5/ 4/ 3 Video Games, Macbook, VCD/ DVD Player, IP TV, STB, Media Box, Camera, Xbox360, , Huawei Box, MIUI Box, Smart Box, Blue-ray Player Chromecast, PC/Computer,ROKU4, SAT Receiver, Digital camera, Projector.

Product description

2-Port 8K@60Hz 4K@120Hz HDMI 2.1 Audio Extractor OVERVIEW The 2 ports HDMI 2.1 Audio Extractor 2 in 1 out easily shares video and audio from 2 different HDMI sources with 1 HDMI display. you can easily add external speakers, amplifiers, sound bars, and receivers to your movie/game system through HDMI (7.1 CH audio)/optical/3.5mm ports Supports ARC CEC. NO lag, NO flash or drop in resolution. HD lossless Audio/Video formats.And Audio DE-embed, Optical Audio out without TV connected Easily switching between seamless transitions. No frequently plugging and unplugging needed. HDMI 2.1 SWITCH Audio Extractor FEATURES HDMI 2.1 4K@120Hz 4:4:4 8bit HDR,HDCP 2.3 Dolby vision,VRR,ALLM EDID copy, multiple EDID setting for compatibilitySupports 3D, Support deep color 30bit,36bit Supports ARC, Dolby Atmos, DTS X,Dolby True HD, DTS-HD Master Audio, PCM7.1. switching anytimevia IR remote control, buttons on unit

HDMI Audio Extractor ARC CEC Setting AUDIO MODE SELECT ARC,Optical and L/R will output audio from TV Apps NO CEC AUDIO MODE SELECT SPDIF/5.1CH,COPY TV'EDID,Audio will be 5.1CH CEC. AUDIO MODE SELECT L/R/2.1CH,COPY TV' EDID,Audio will be 2.1CH CEC

HDMI 2.1 Audio Extractor NOTE 1. HDMI Cable:Most using issues are cuased by poor quality cables. Highly recommend certified HDMI 2.1 cable less than 10ft / 3m. Please see ASIN B0B67KQ8CM if needed. 2.HDMI ARC Switch: 1.Only Input 1 port can support ARC mode.,Both TV and Stereo need to support ARC, otherwise, ARC mode cannot be supported. 3. Does NOT support Sonos-ARC/e-ARC. Supports only 4 in 1 out, does NOT support 1 in 4 out or “Bi-directional”.NOT support automatic switch.NOT support 8K 60HZ 4:4:4 48Gbps

Operating and Connecting 1.Connect HD signal sources into HDMl switch input with 4 HDMI2.1 cables 2.Connect 1HDMl display source into HDMl switch output with 1 HDMI2.1 cable 3.Connect the switcher with 5V/2A power adapter

Package Accessories: HDMI Audio extractor x1 Type-C cable x1 Reusable Cable Tie x2 User manual x1
