| Manufacturer | Prokomon |
|---|---|
| Part number | PT1265M |
| Item Weight | 1.41 kg |
| Product Dimensions | 40.5 x 28.7 x 8.3 cm; 1.41 kg |
| Manufacturer reference | PT1265M |
| Material | Rubber |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| Length | 40.5 Centimetres |
| Width | 28.7 Centimetres |
| Height | 8.3 Centimetres |
- VIDEO
fuel pressure tester kit.PT1265Prokomon
Image Unavailable
Image not available for
Colour:
Colour:
-
-
-
- To view this video, download
Frequently bought together

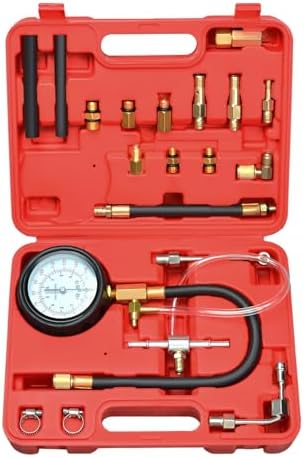

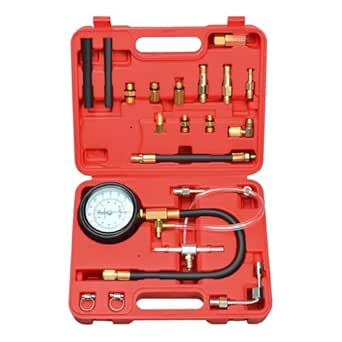

This item: Prokomon 0-140 PSI Fuel Injection Pump Pressure Test; Fuel Pressure Tester Kit for Most of Cars and Trucks
$35.99
Get it by Sunday, Feb 15
In Stock
+
$26.95
Get it by Sunday, Feb 15
In Stock
+
$30.49
Get it by Wednesday, Feb 18
In Stock
Total price:?$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product information
Additional Information
| ASIN | B087LVWQ5Y |
|---|---|
| Customer Reviews |
4.2 out of 5 stars |
| Â鶹Çø Rank |
|
| Date First Available | Aug. 6 2020 |
Feedback
Product Description
0-140PSI Fuel Injector Pump Pressure Tester
This fuel injuction pump pressure tester kit is designed to check fuel injection pump pressure and fuel flow easily and quickly. You can compare the pressure value with the manufacturer's recommended reference range to assist in diagnosing the gasoline engine fuel system.
Fitting Size
1.#Adapter:m12*1.5//7/16-20 UNF 2.#Adapter:m12*1.25//7/16-20 UNF 3.#Adapter:m12*1.5//7/16-20 UNF 4.#Adapter:m8*1mm//7/16-20 UNF
5.#Adapter:m14*1.5//m12*1.5 6.#Adapter:m12*1.5//m10*1 7.#Adapter:m14*1.5//m12*1.5 8.#Adapter:m12*1.5//m8*1
9.#Adapter:m12*1.5//m8*1 10.#Adapter:m12*1.5//m8*1 11.#Adapter:7/16-20UNF//7/16-20 UNF 12.#Adapter:7/16-20 UNF
13.#Adapter:m8*1&//7/16-20 UNF 14.#Adapter:Size 6 15.#Adapter:Size 8 16.#Adapter:Size 10-16
17.#Adapter:straight rod m12*1.5 18.#Adapter:m14*1.5/m12*1.5 bending bar
Splice In-line Connection
The fuel pump tester is connected to the tee fitting and two cut hoses are used to connect it to the fuel pump and engine respectively.
Two Connection Modes
- Direct Test 1: The fuel pump tester directly tests 1/4" standard valves or with one of the 1/4" fittings installed in the test fuel pressure test port (M8/M10/M12/M14).
- Direct Test 2: Connect the 8" hose to the built-in 15" hose and insert the combination into the M6 fuel pressure test port for a quick test.
How To Use
Step 1
8 "L hose for the M6 fuel pressure test port, and M8/M10/M12/M14 adapters for the corresponding test ports on the fuel rail.
Step 2
15 "L hose for direct connection to the 1/4" SAE standard Schrader valve on the fuel pump.
Step 3
The original reading of the fuel gauge is 0, then start the engine.
Step 4
The gauge shows a reading of pressure.You can compare the pressure value with the manufacturer's recommended reference range to assist in diagnosing the gasoline engine fuel system.
